Toyota · Expedition

Toyota Land Cruiser J7

A GRJ79, built without compromise for recovery, self-sufficiency and long-term value retention. Recovery-ready, well-lit, strong on communications and protected for the long haul.

The build

From stock to expedition vehicle

This Land Cruiser GRJ79 was built into a true expedition vehicle with us, geared consistently towards recovery, self-sufficiency and long-term value retention. The camper base build comes from Custom Campers; the expedition-ready equipment comes from us.

Built for the distance

Recovery-ready and self-sufficient

From the winch bumper to the corrosion protection, every detail is designed for serious touring and demanding terrain.

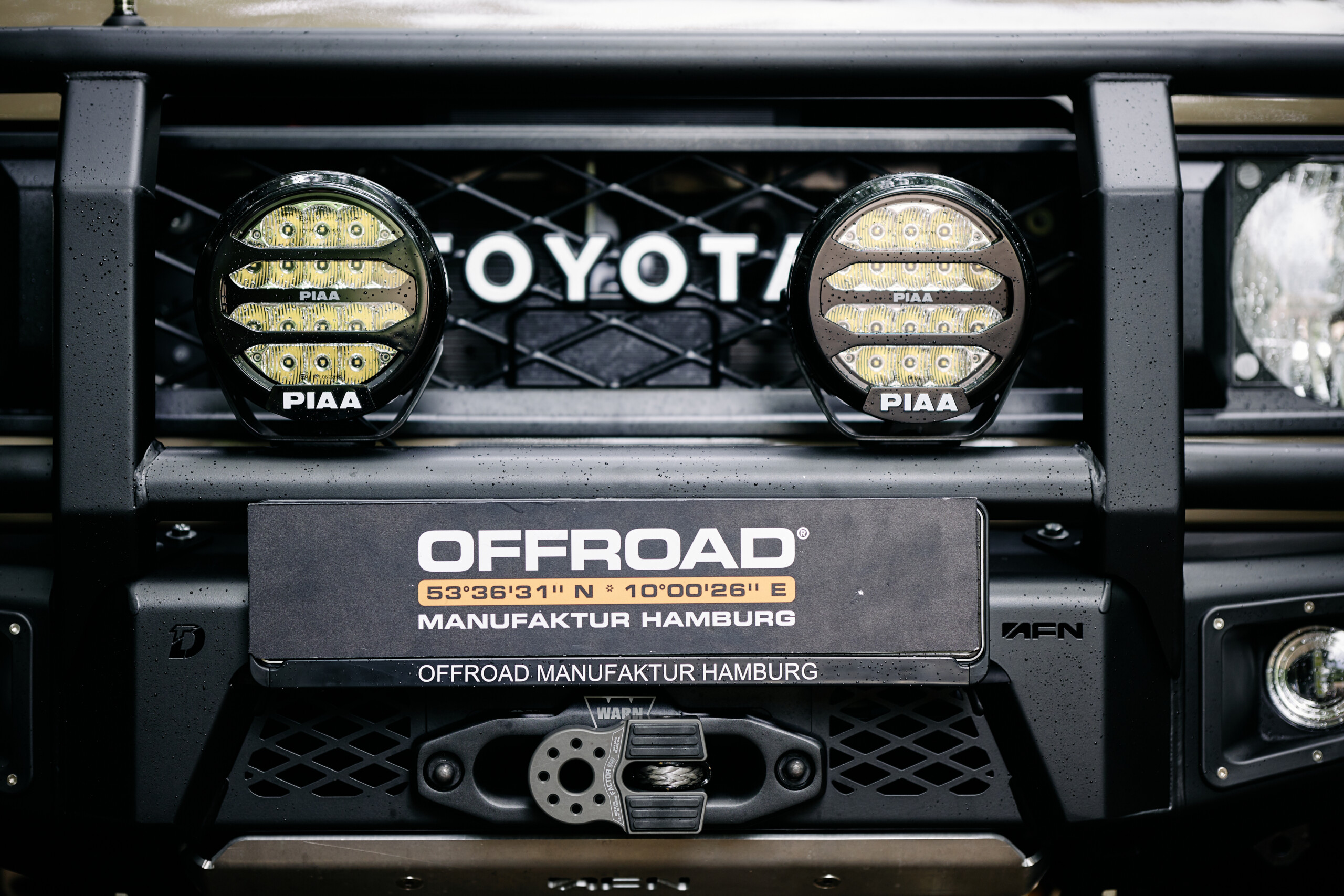

Close-up of the PIAA LPX570 LED lights and WARN winch on the AFN front bumper

Front bumper and Winch

At its heart is an AFN winch bumper for the Land Cruiser J7 with a bolt-on, removable brush guard. Inside works a WARN ZEON XP 12 winch with 5,443 kg pulling force and synthetic rope, WARN's premium model. Complemented by a wireless remote, ZEON socket extension, battery isolator switch and a Flatlink pulley. Recovery, no discussion.

Raised air intake

An original Toyota J7 snorkel provides clean, watertight-mounted air supply even in the toughest conditions.

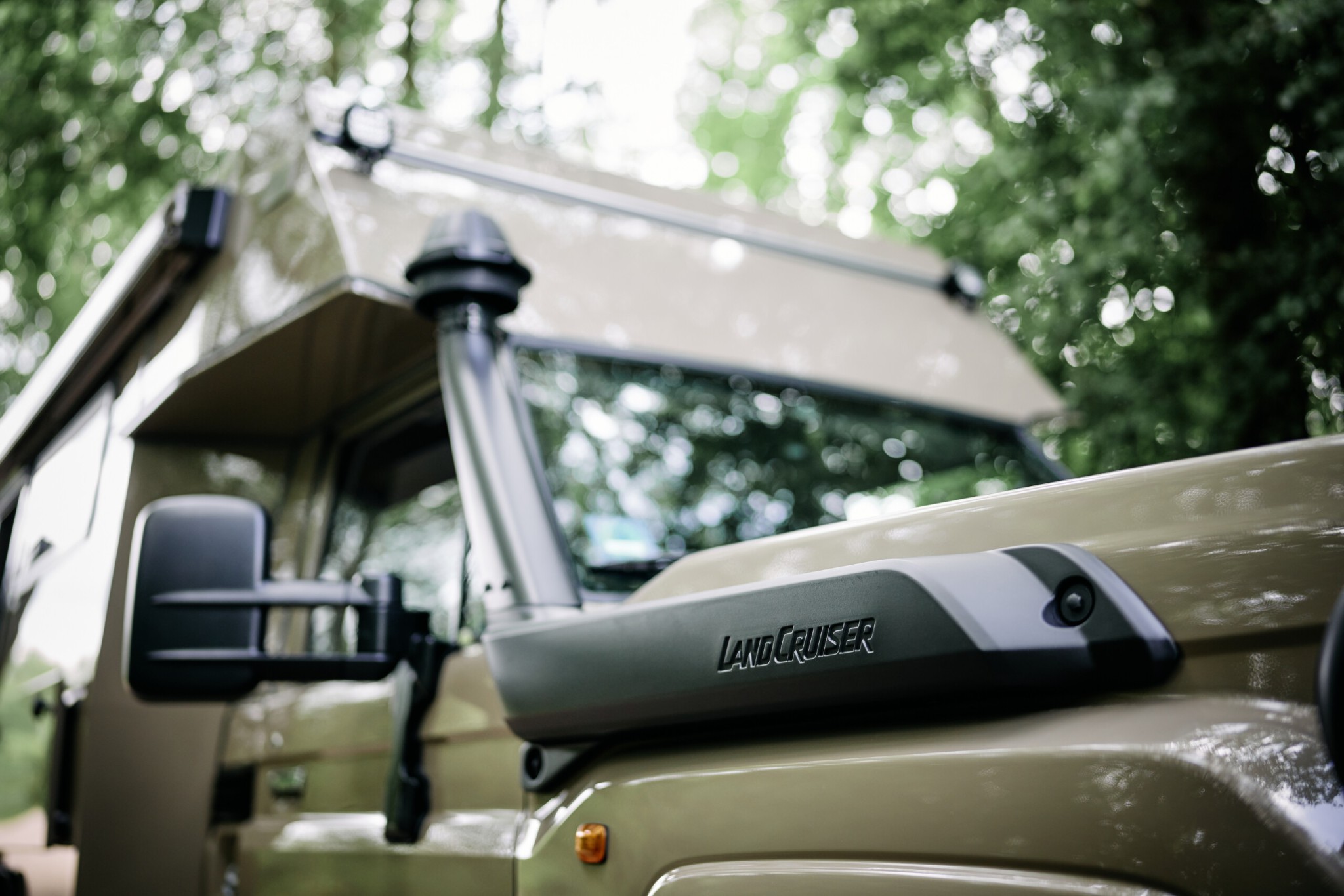

Land Cruiser lettering on the bonnet next to the snorkel and mirror

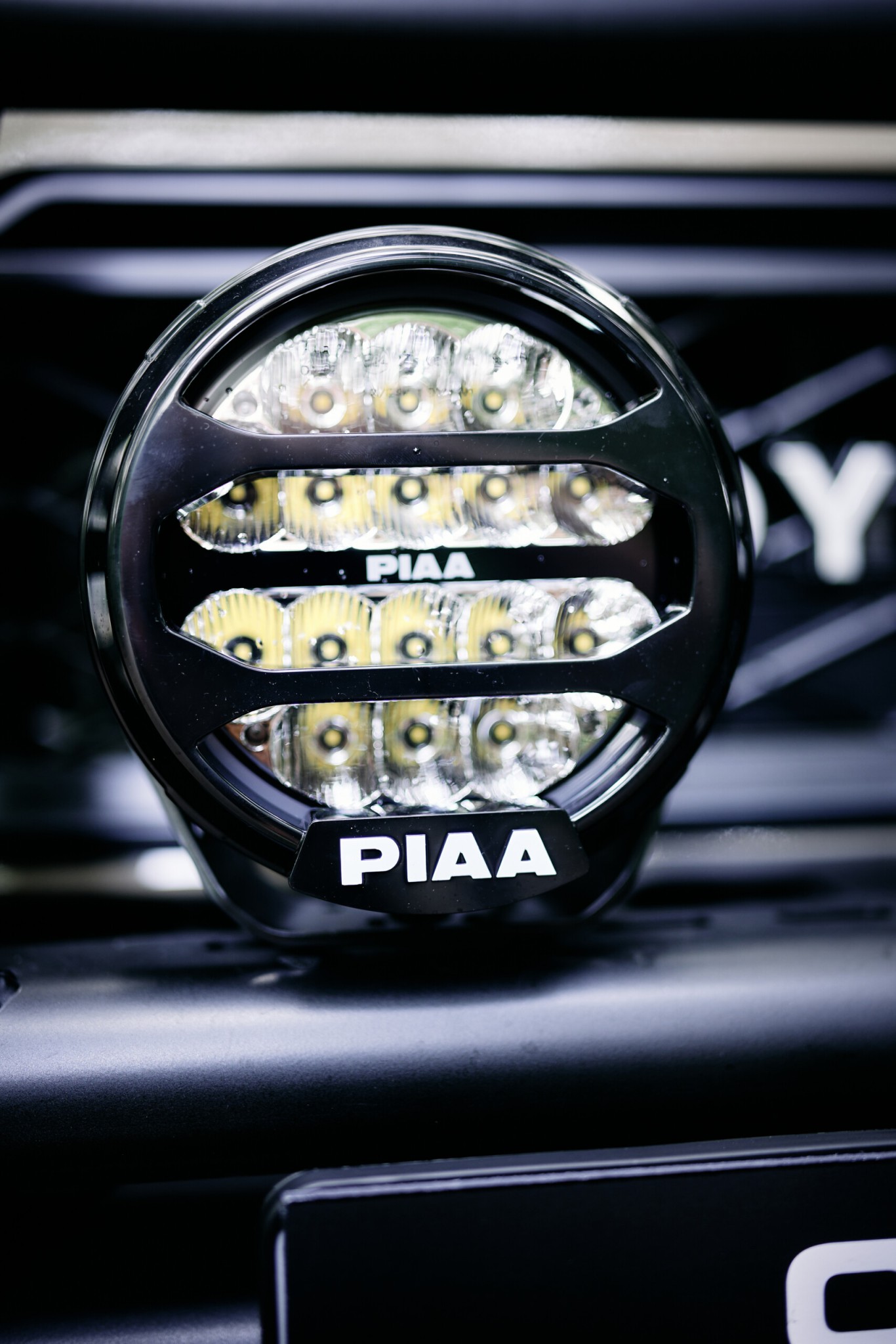

PIAA LPX570 LED auxiliary light on the Land Cruiser J7, close-up

See and be reality

For maximum visibility it was extensively upgraded: PIAA LPX570 LED auxiliary lights on the front bumper, OSRAM LED main-beam bulbs with road approval and up to 230 percent more brightness including TÜV certificate, plus Osram Night Breaker H4 LED. A headlight stone-chip guard protects the main headlights.

Traction boards and recovery

Side-mounted MaxTrax traction boards sit on the existing airline rails via a plug-and-play mount. Plus an ARB Premium Recovery Kit with snatch strap, tree-trunk protector, rope extension, shackles and pulley. Everything you need for serious recovery.

Toyota Land Cruiser J7 with camper cell, rear three-quarter view on a forest track

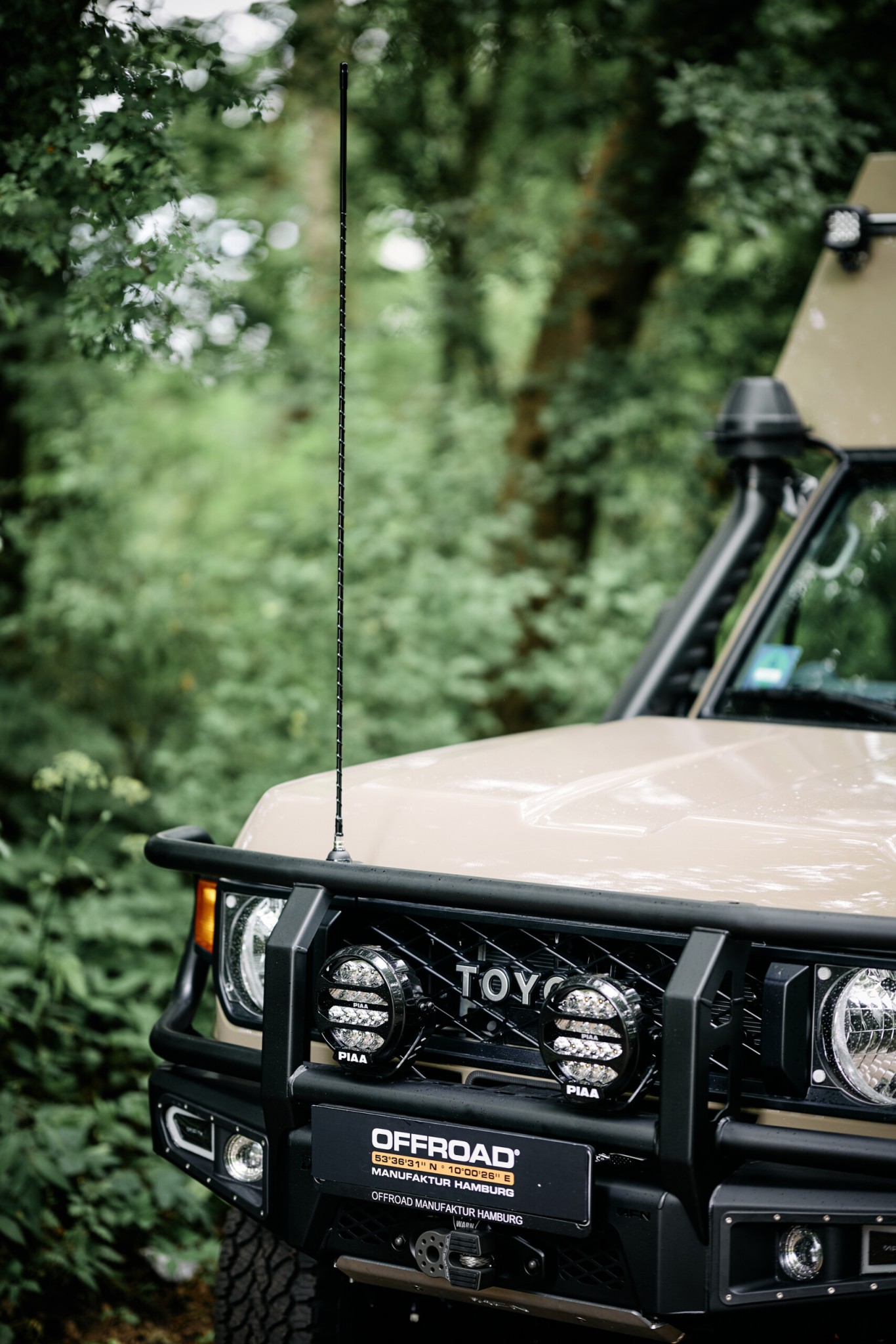

CB radio antenna on the front bumper hoop of the Land Cruiser J7

Radio in the background

Hidden in the dashboard: a CB radio system with CRT Mike II and President Randy III, plus a Solarcon antenna on the front bumper's hoop and matching accessories.

Corrosion protection and value retention

For long-term protection of the frame and body, the Land Cruiser received the TimeMAX package for long wheelbase with cavity sealing and underbody protection, including rust removal and follow-up treatment.

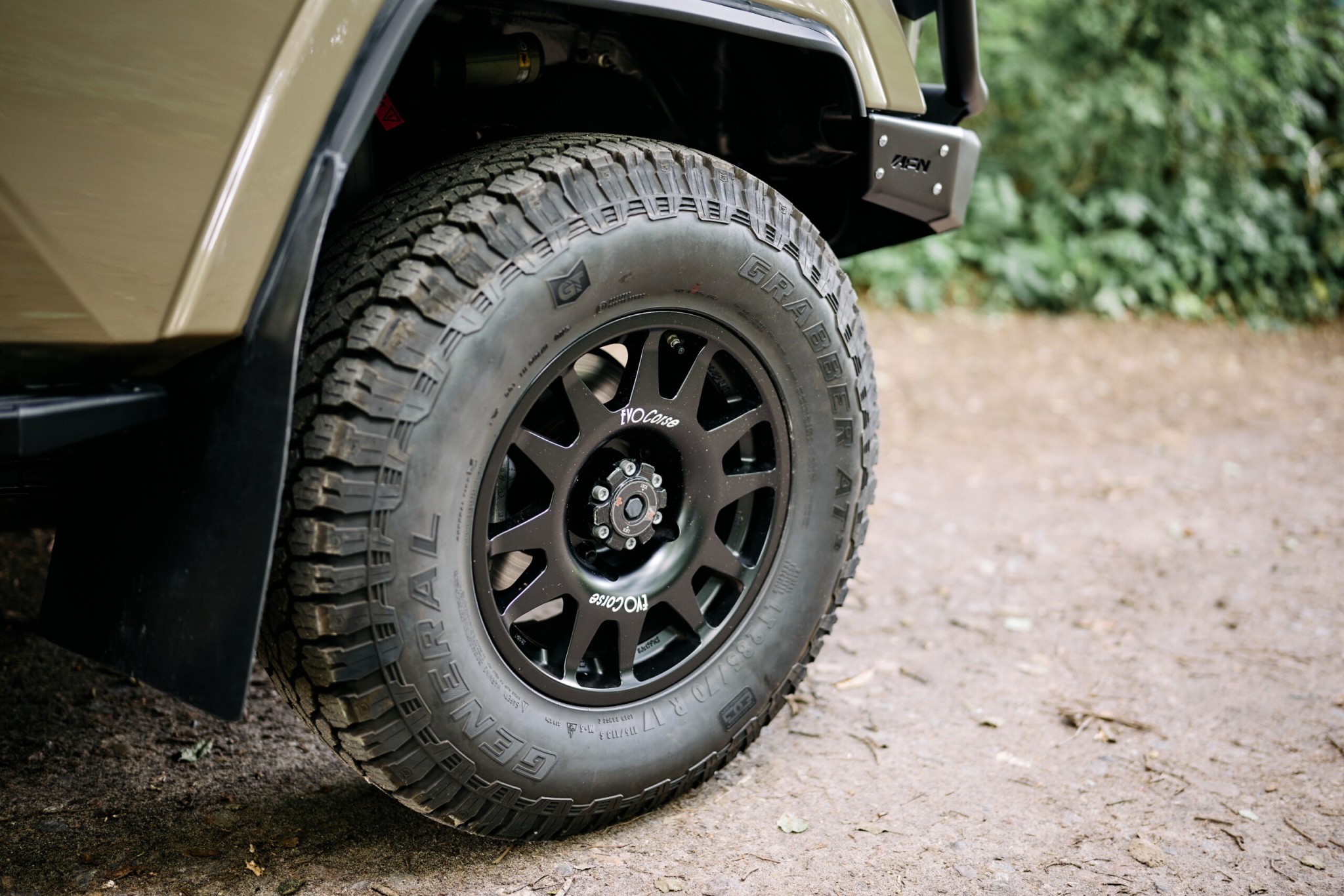

Detail of General Grabber all-terrain tyre on a black EVO Corse wheel on the Land Cruiser J7

Tech

Vehicle & Build

The vehicle

ModelToyota Land Cruiser GRJ79 (J7)
Base buildCustom Campers
WinchWARN ZEON XP 12, 5,443 kg
BumperAFN winch bumper J7
air intakeToyota J7 snorkel (original)
ProtectionTimeMAX cavity + underbody protection

The build

  • AFN winch bumper J7 with removable brush guard
  • WARN ZEON XP 12 winch (5,443 kg, synthetic rope)
  • Wireless remote, ZEON socket extension, battery isolator switch
  • Flatlink pulley
  • Toyota J7 snorkel (original)
  • PIAA LPX570 LED auxiliary lights
  • OSRAM LED main-beam bulbs with road approval (TÜV, up to 230 %)
  • Osram Night Breaker H4 LED
  • Headlight stone-chip guard (adhesive)
  • MaxTrax traction boards with plug-and-play mount (airline rails)
  • ARB Premium Recovery Kit (straps, shackles, pulley)
  • CB radio system: CRT Mike II, President Randy III, Solarcon antenna
  • TimeMAX package long wheelbase (cavity sealing + underbody protection)

Gallery

More from the Build

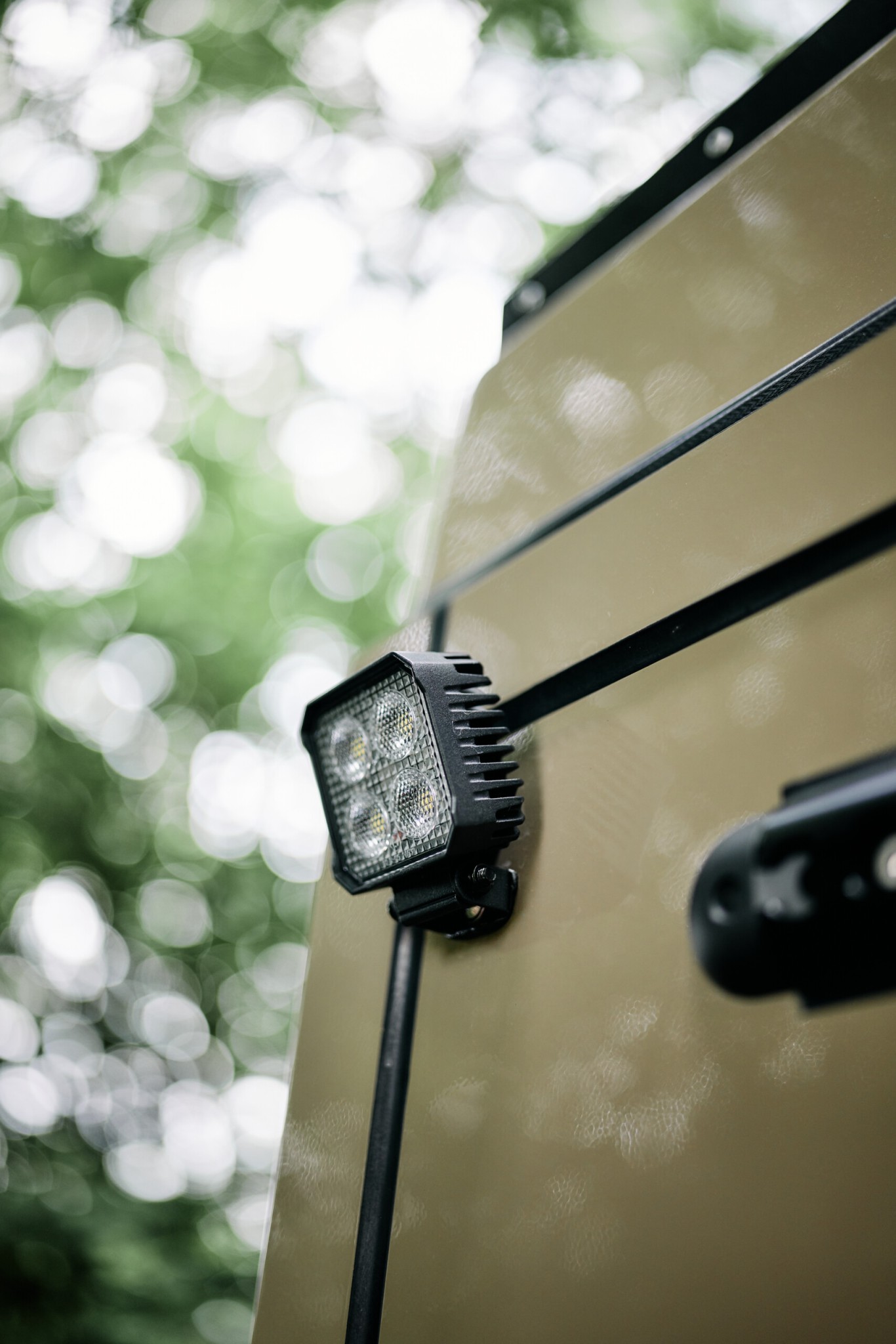

LED-Arbeitsscheinwerfer an der Seite des Camper-Aufbaus

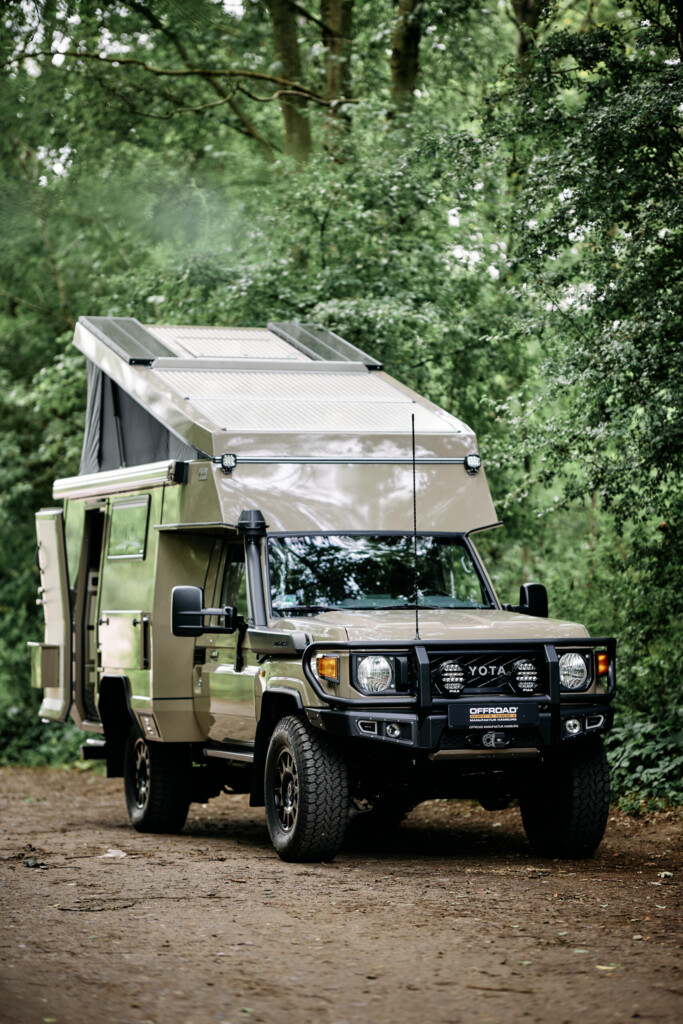

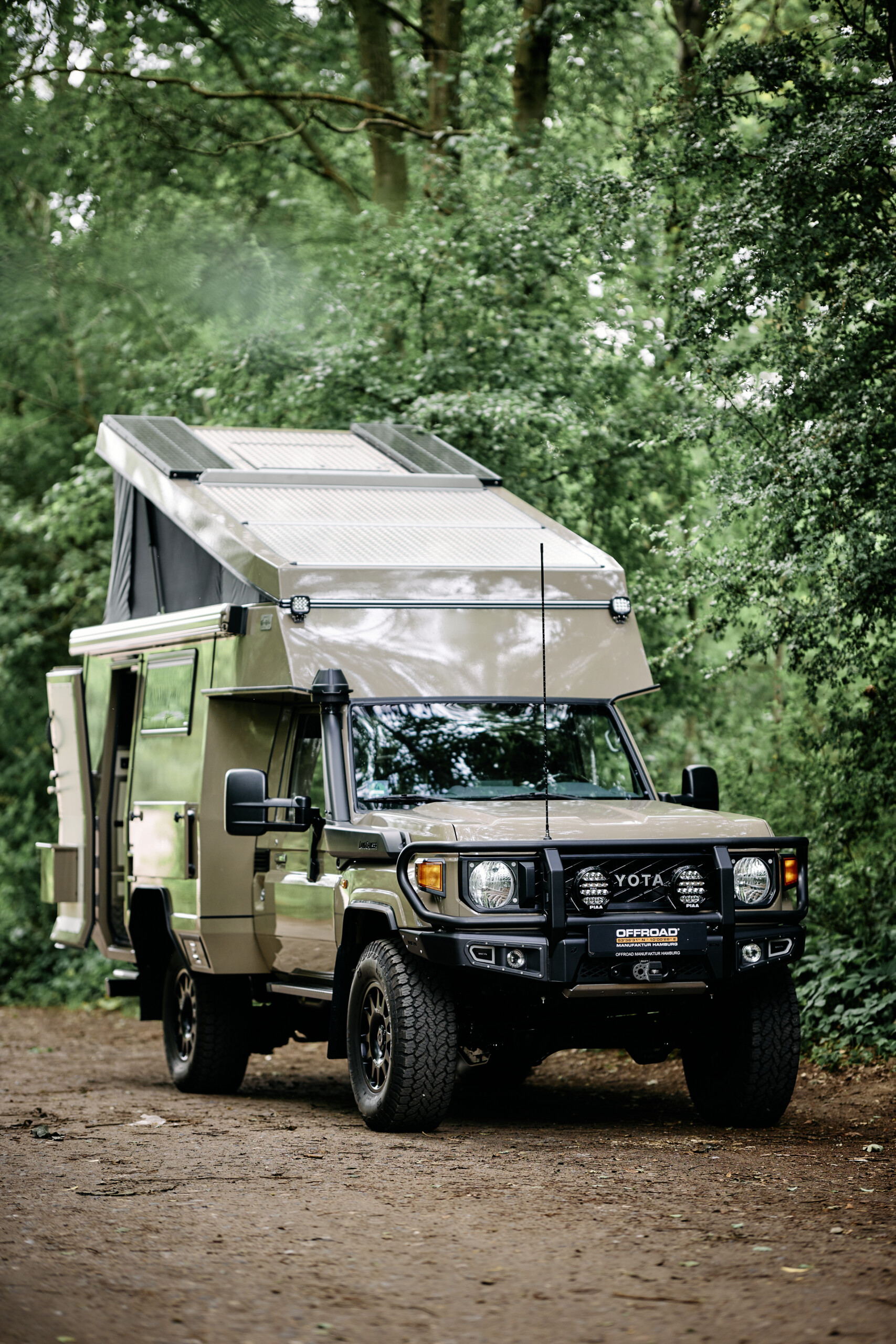

Land Cruiser J7 mit aufgestelltem Hubdach des Camper-Aufbaus, Frontansicht schräg

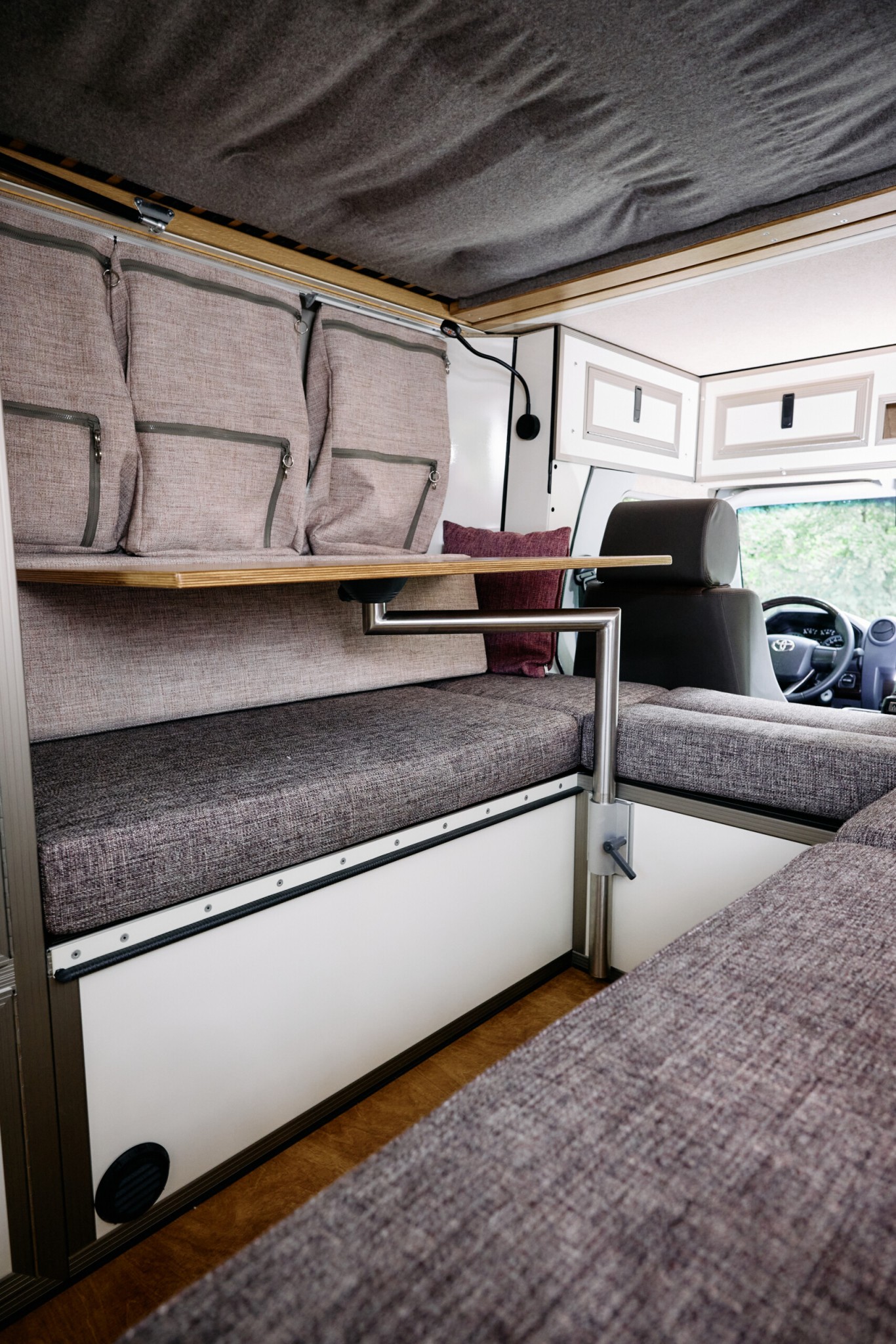

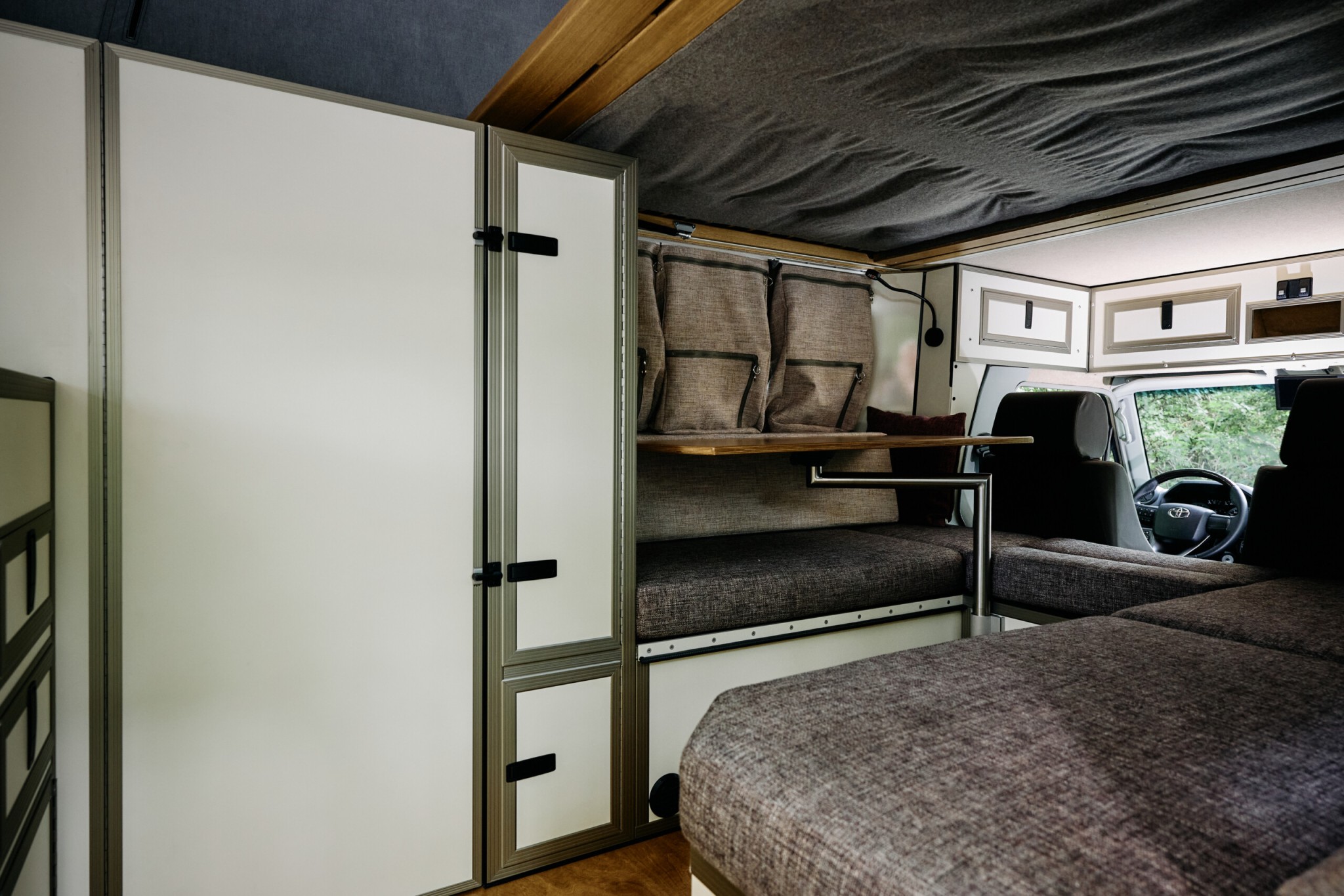

Innenraum des Camper-Aufbaus mit Sitz- und Schlafbereich, Blick nach vorn

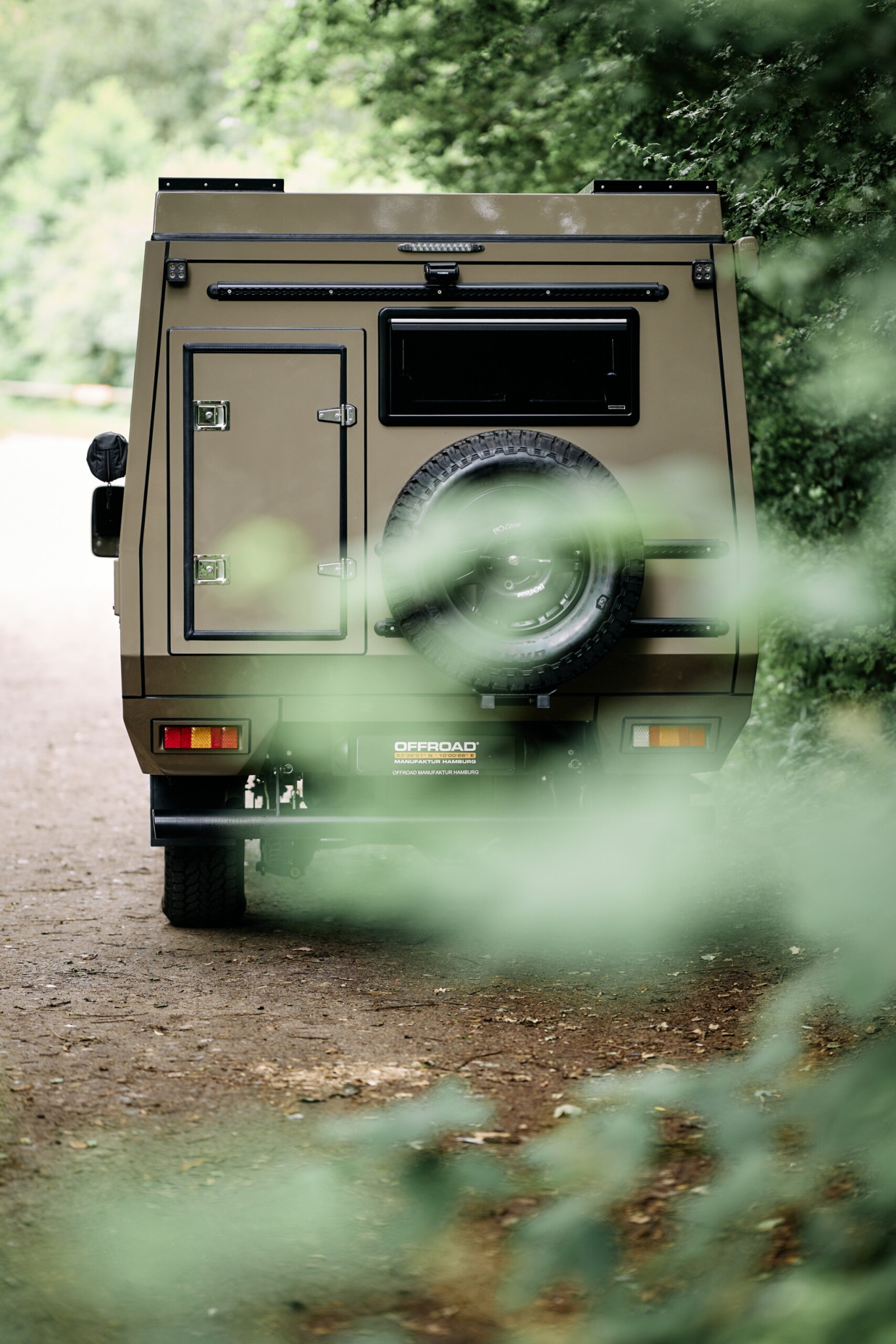

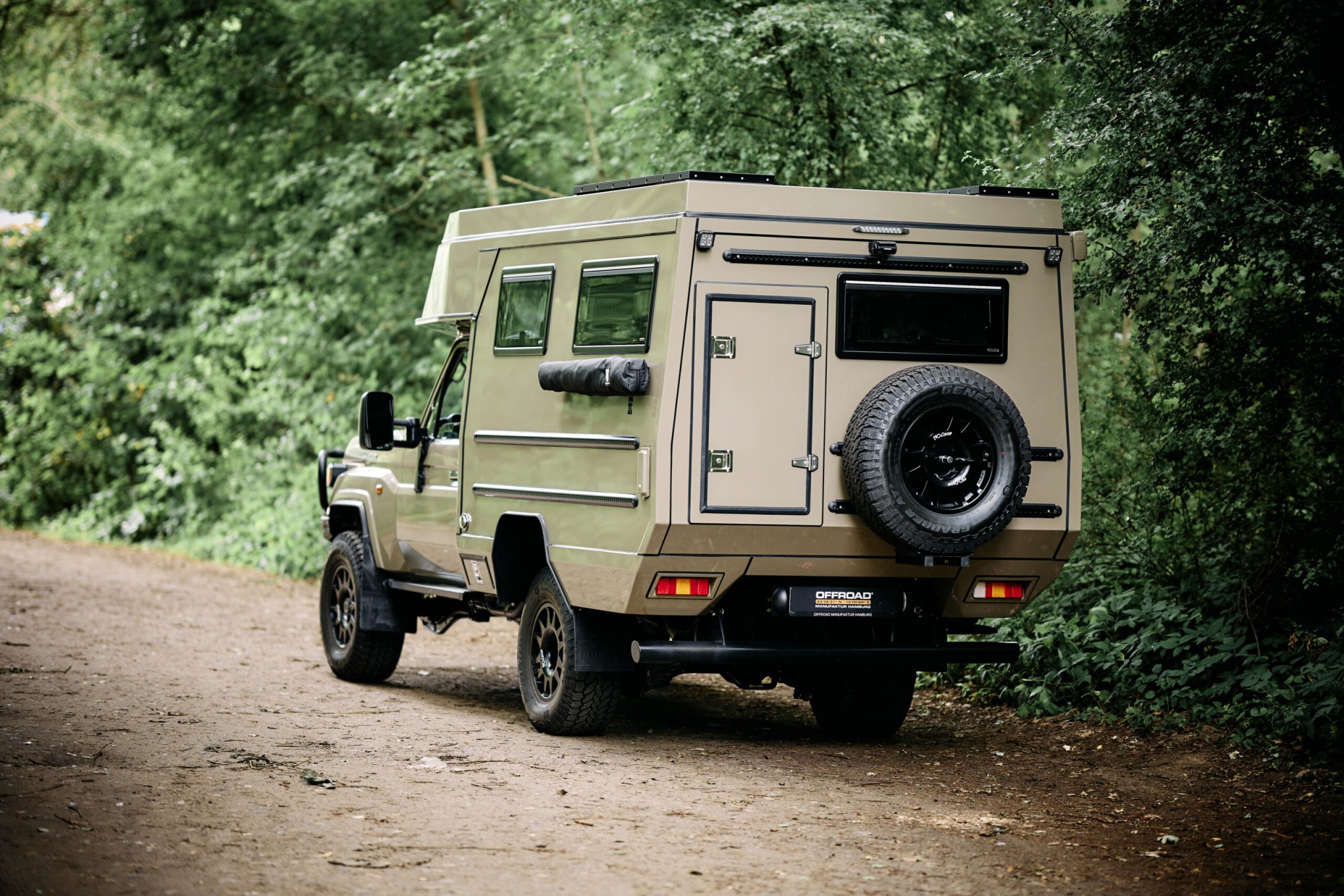

Heckansicht des Land Cruiser J7 mit Camper-Aufbau, Reserverad und Stauklappen

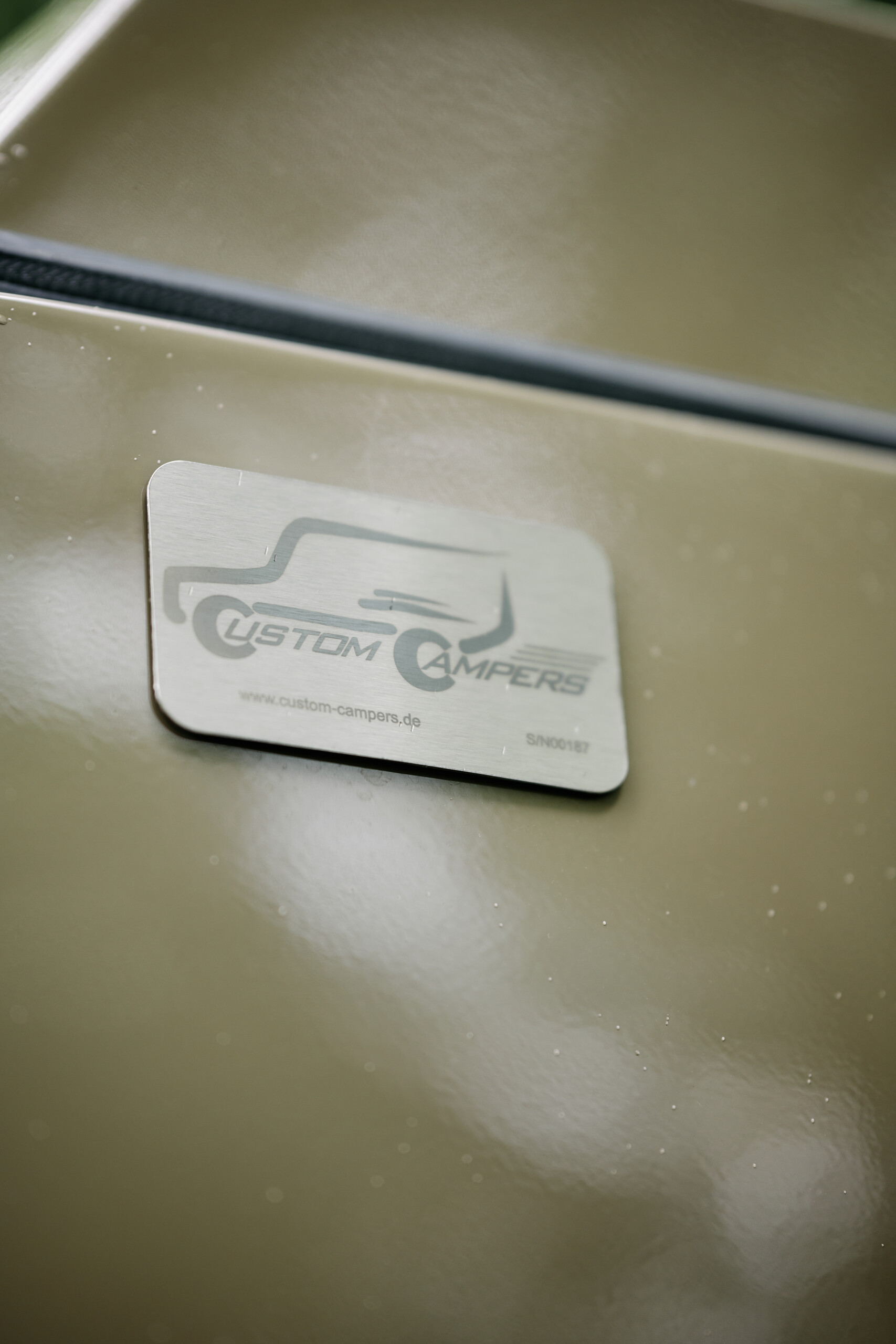

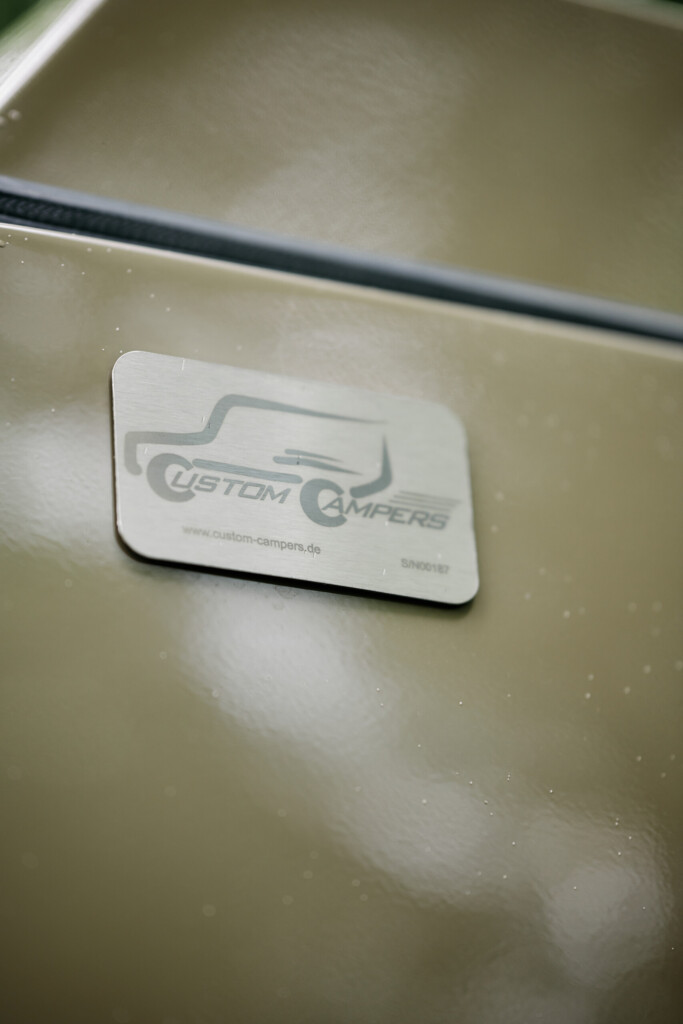

Custom Campers Plakette am Camper-Aufbau des Land Cruiser J7

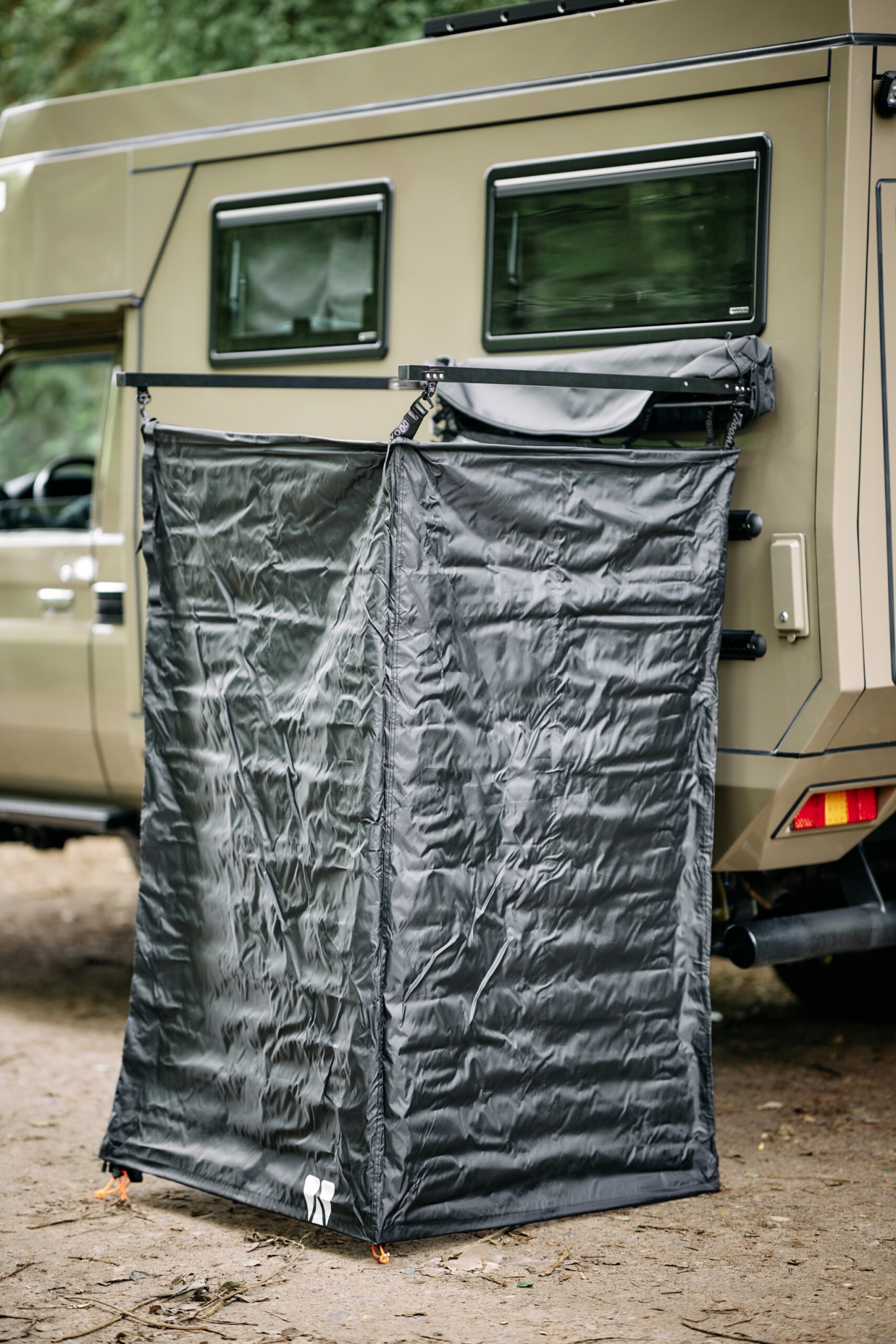

Ausklappbares Dusch- und Umkleidezelt an der Seite des Camper-Aufbaus

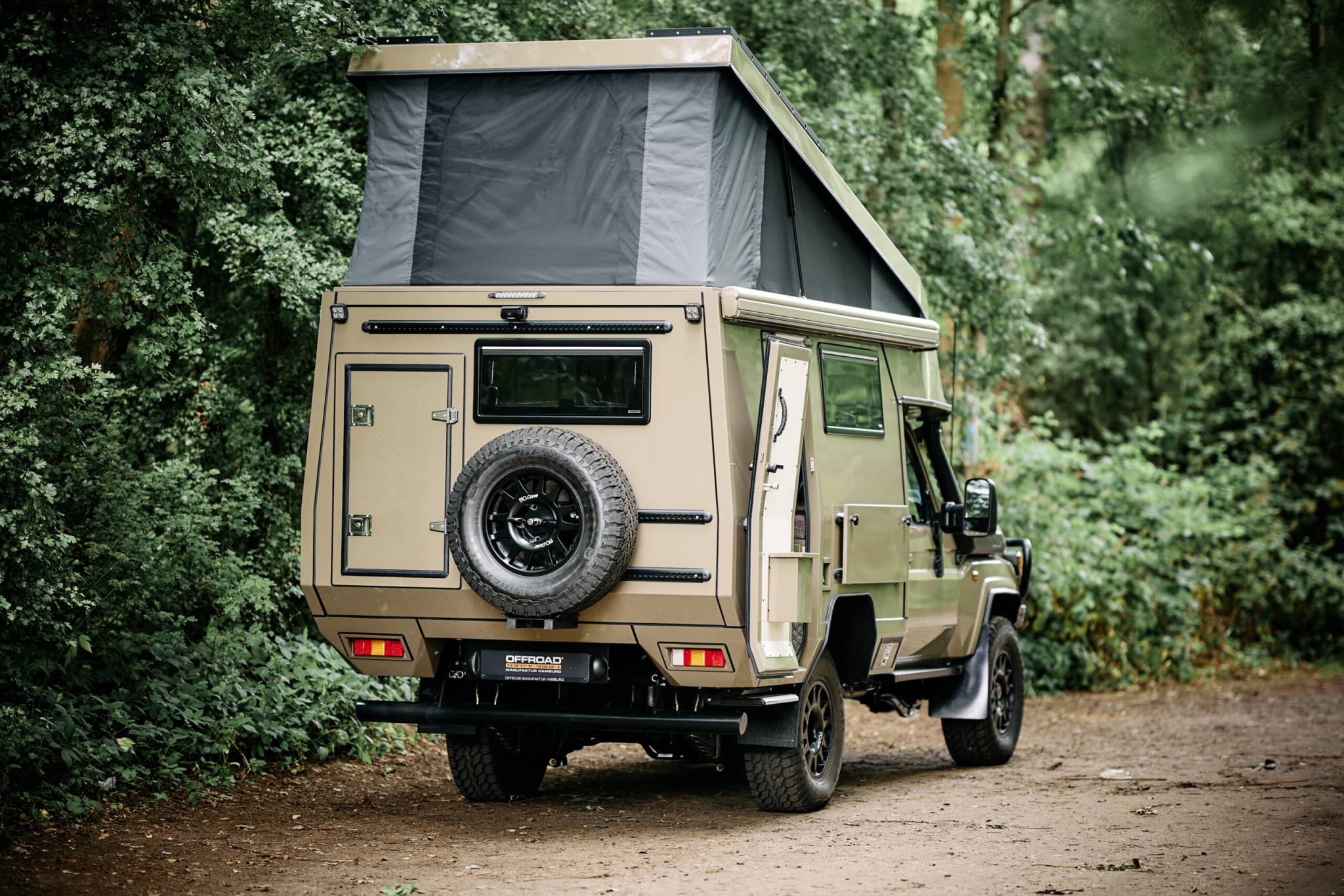

Heckansicht des Land Cruiser J7 mit aufgestelltem Hubdach und Schlafzelt

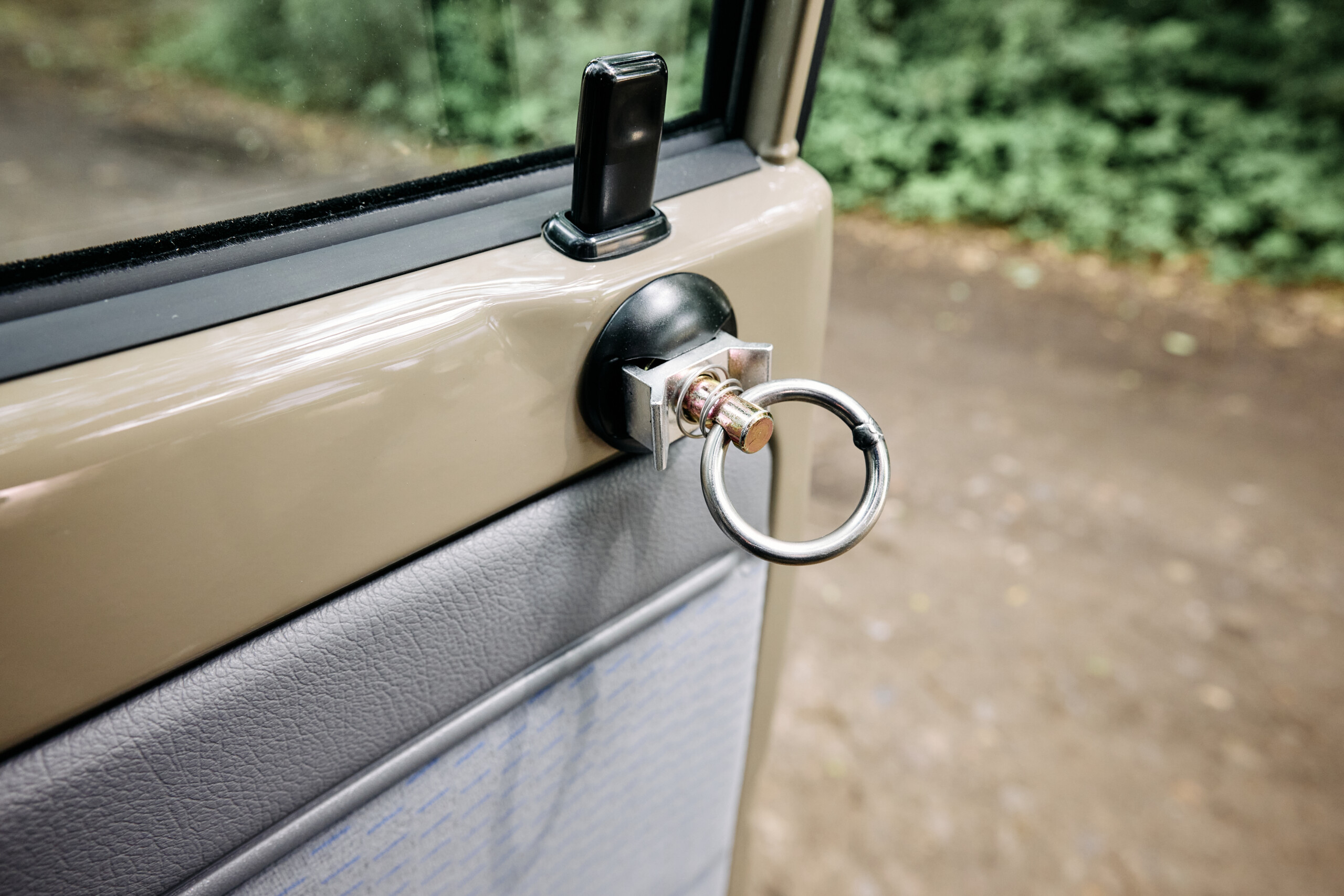

Detail einer Türverriegelung mit Ringgriff im Land Cruiser J7
Land Cruiser Schriftzug auf der Motorhaube neben Schnorchel und Spiegel
Wohnbereich im Camper-Aufbau mit Polstern, Stauraumtaschen und Tisch

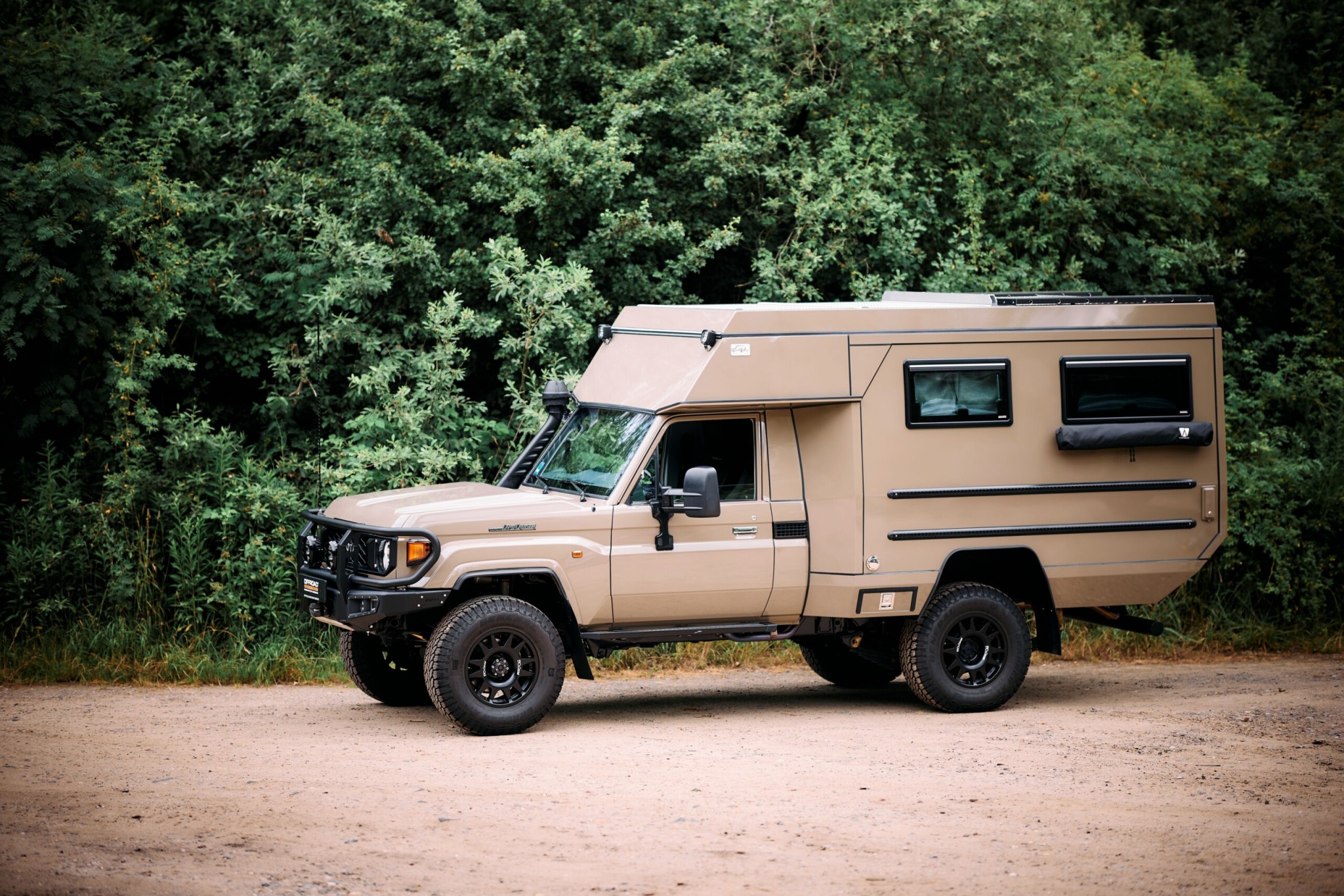

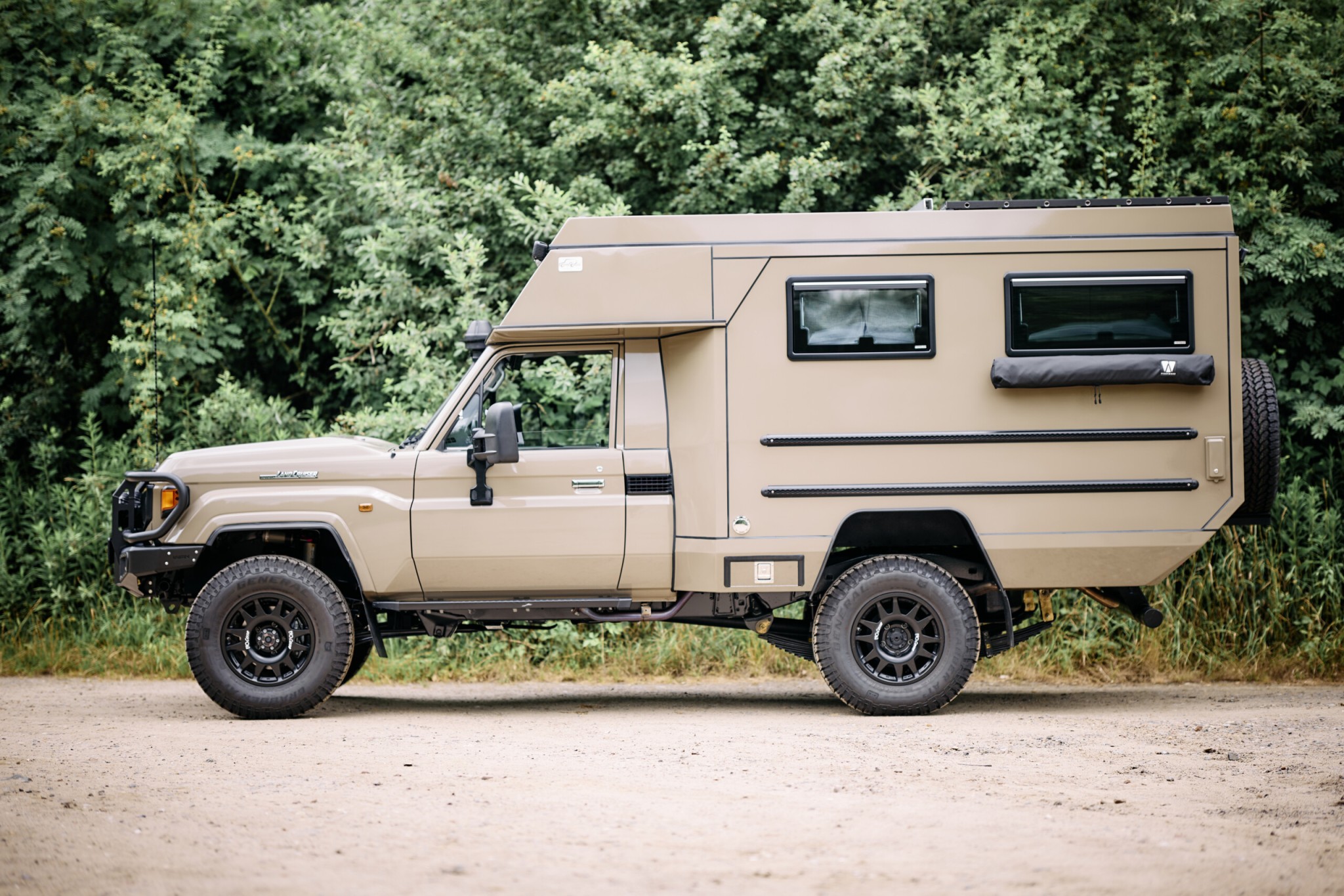

Seitenansicht des Toyota Land Cruiser J7 Expeditionsmobils mit Camper-Aufbau

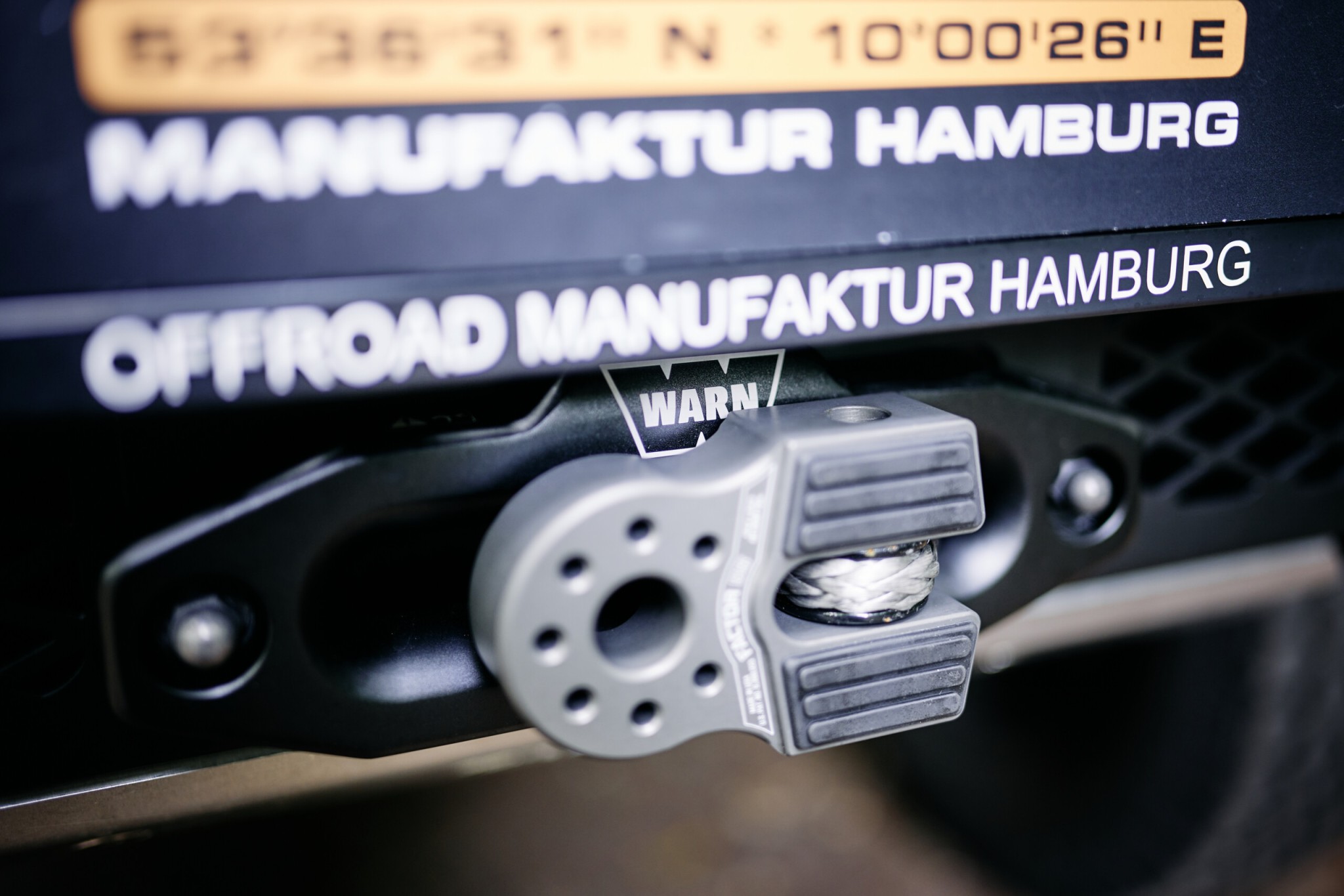

WARN Flatlink Seilhaken mit Kunststoffseil an der AFN Frontstoßstange
Toyota Land Cruiser J7 mit Camper-Aufbau, Heck-Seitenansicht auf einem Waldweg
PIAA LPX570 LED-Zusatzscheinwerfer am Land Cruiser J7 in Nahaufnahme
Toyota Land Cruiser J7 mit Camper-Aufbau, Seitenansicht auf einem Waldweg
Detail von General Grabber Geländereifen auf schwarzer EVO Corse Felge am Land Cruiser J7

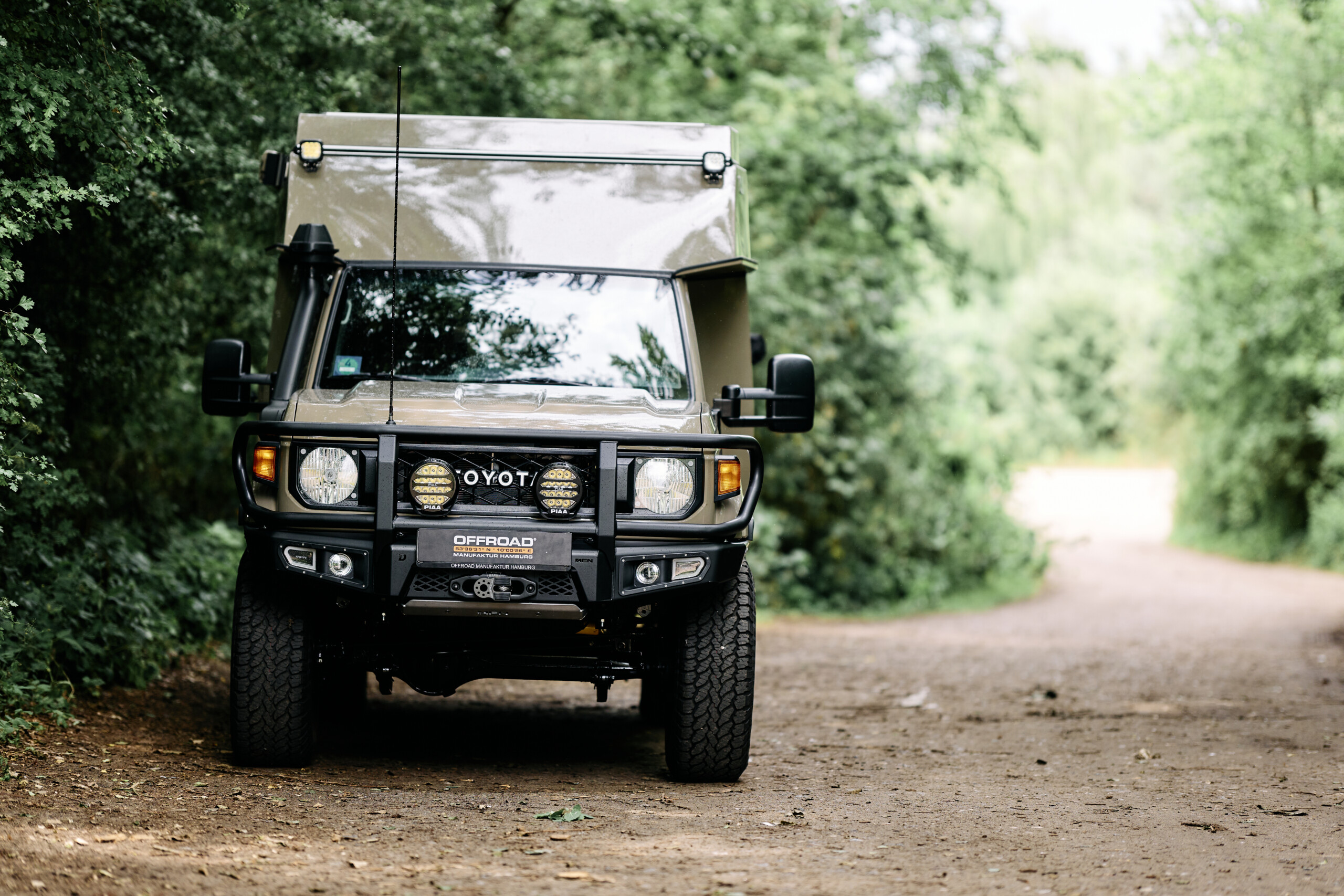

Frontansicht des Toyota Land Cruiser J7 mit AFN Windenstoßstange und PIAA Zusatzscheinwerfern
Nahaufnahme der PIAA LPX570 LED-Scheinwerfer und WARN Seilwinde an der AFN Frontstoßstange

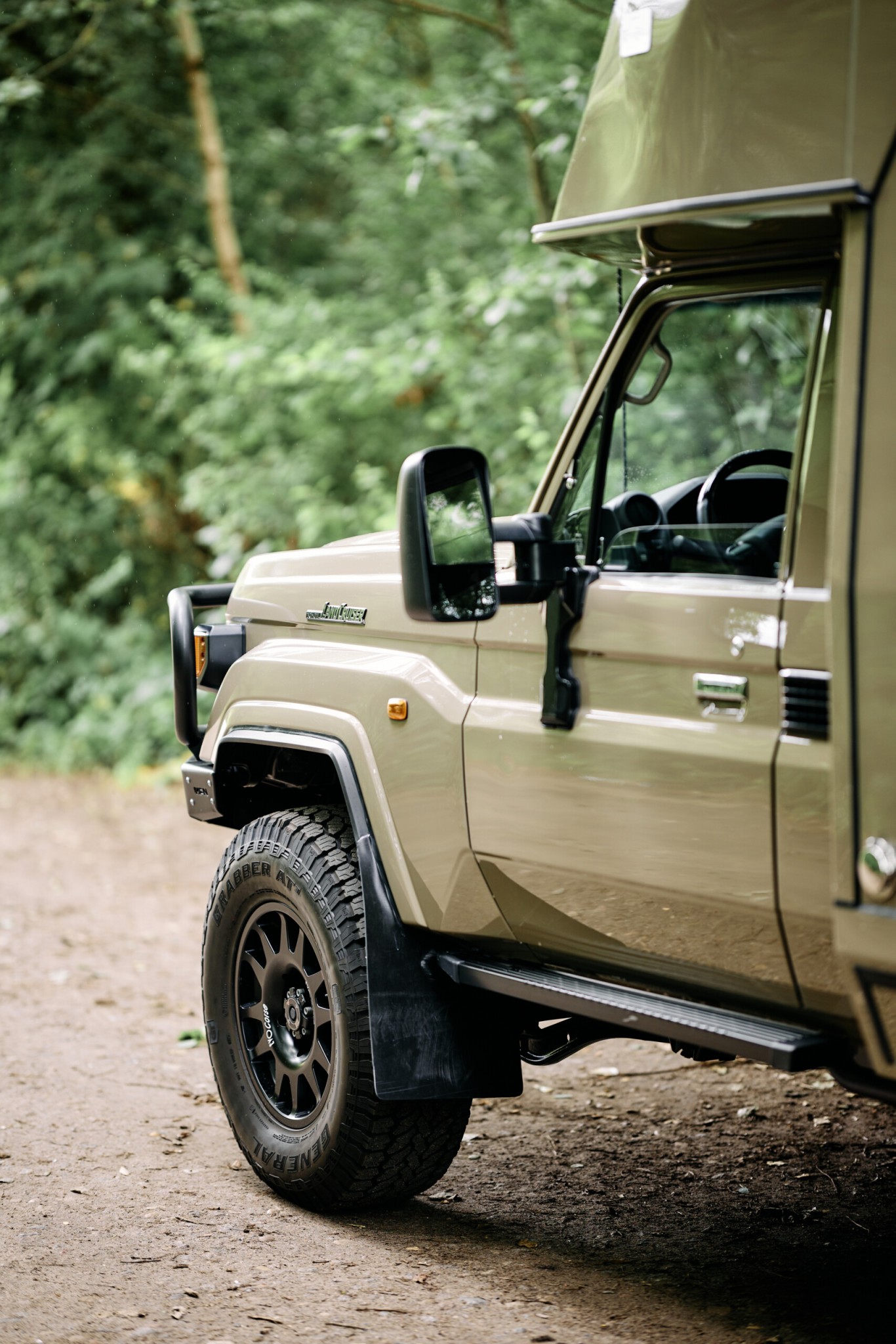

Seitliche Detailansicht des Land Cruiser J7 mit Schnorchel, Kotflügelverbreiterung und Geländereifen
